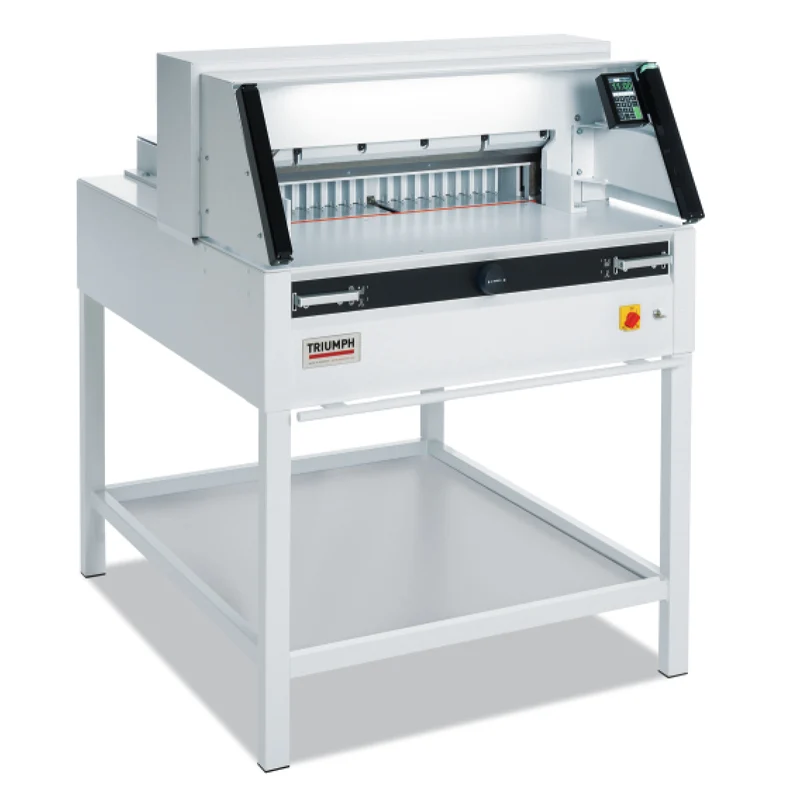

Triumph 6660 Paper Cutter 25 1/2" Programmable

*** SPECIAL ORDER PRODUCT.  PROCESSING TIME WILL BE 5-7 BUSINESS DAYS BASED ON PRODUCT AVAILABILITY. ***

Triumph 6660 Paper Cutter 25 1/2" Programmable with IR Safety Front Light Beams

• Triumph 6660 cutter 25 1/2" programmable with IR safety front light beams
• Patented Easy Cut electronic blade activation bars (2 handed operation)
• IR light beam safety curtain on front table
• Transparent electronically controlled front safety guard
• Transparent safety cover on rear table
• Main switch and safety lock with key
• Patented IDEAL safety drive
• Automatic blade and clamp return from every position
• Disc brake for instant blade stop
• Blade changing device
• Outside blade depth adjustment
• Blade and cutting stick can be changed without removing covers
• Ergonomic, 37" working height
• Electric blade and clamp drive
• Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
• Pre-programmed for standard paper sizes, memory key for repeat cuts
• Digital measurement display (cm and inches)
• Self diagnostic system with error indication on display
• Electronic hand wheel with variable speed control for manual back gauge setting
• Adjustable, spindle guided back gauge with narrow separations and plastic gliders
• Bright LED optical cutting line
• Dual side guides on front and rear tables
• All metal construction
• German steel blade
• Optional side tables for increased work surface

Cutting width, inches	25 1/2
Cutting height, inches	3
Narrow cut, inches	1
Length behind blade, inches	24

• Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)
• Motor output, horsepower: 2
• Dimensions (D x W x H), inches: 48 x 39 x 51 (61 1/2 W with side tables)
• Shipping weight, pounds: 775 (796 with side tables)

Introducing VRCUT

VRCut is a groundbreaking software solution designed to automate the cutting workflow by promoting an efficient and error-free cutting process from start to finish.

VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operators of any experience level the ability to cut with confidence on select Triumph cutters.
