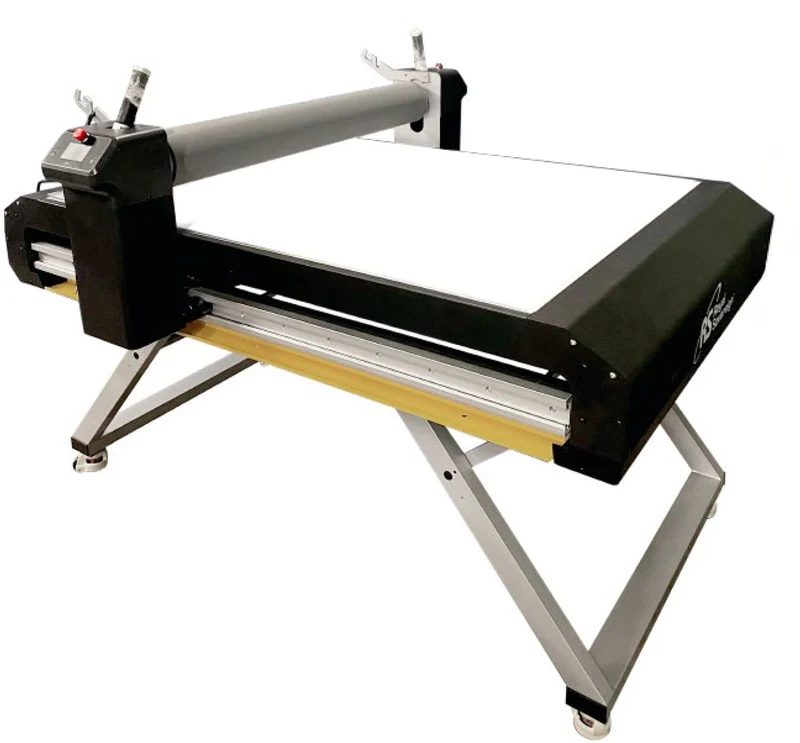

RSFA-1000M Flatbed Applicator

3’ x 4’ Electronic nip adjust Heat Assisted Applicator

This is a new heat-assisted cold applicator featuring electronic nip pressure control, ensuring precise application of pressure for every lamination.

Designed for optimal performance and consistency, it guarantees superior results with every use like mounting, pre-masking and laminating.

Features

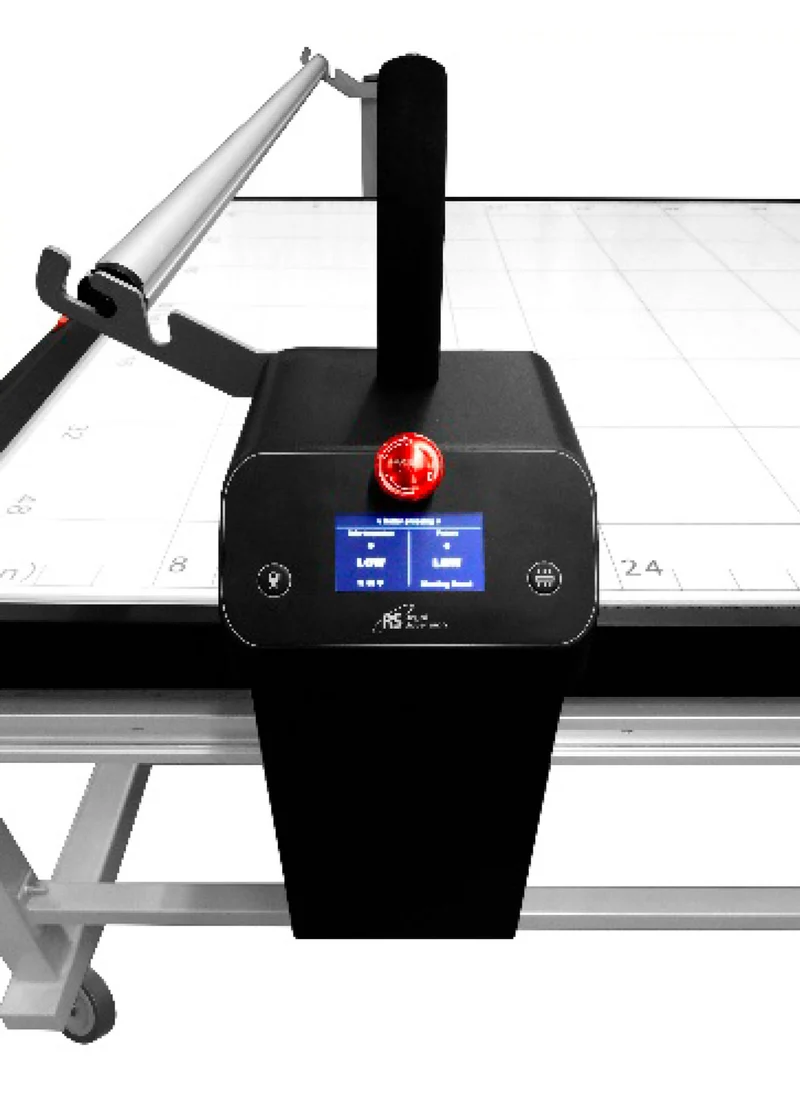

• Electronic ergonomic handles
• Raise and lower the roller on either side of the table at any time with precision
• Digital heat control for heat assist operation
• Easily toggle between three heat settings – lamination, mounting & pre-masking
• Open Access
• An under-the-table gliding bridge allows operators to easily pass graphics over the roller
• Easy transportation
• Easy move in and out with foldable legs. Easily move in regular size door
• One-Person Operation
• A single operator can mount large full-sheet graphics faster and more efficiently with the Multi-Applicator

Spec sheet

MODEL NAME	FA-1000M
Bed length	1,016 mm / 3.33’
Bed width	1,651 mm / 5.41’
Bed height	914mm / 36”
Length of working area	1,230mm / 4’
Width of working area/roller width	930mm / 3’
Voltage	115V, 50/60Hz
Power	1500W
Type	Flatbed
Max. thickness of substrate	76.2mm / 3"
Max. Temperature	Variable heat assist to 140°F (60°C)
Display Temperature	Cold/Low/High (3steps)
Bed Surface	Acrylic table top with Self healing cutting mat
Roller Nip Pressure Control	Electronic
Lifting Speed	24mm/s
Roller Diameter	Crowning,130mm(5.12”)
LED light	LED illumination from under the table
Wheels	Locking casters
