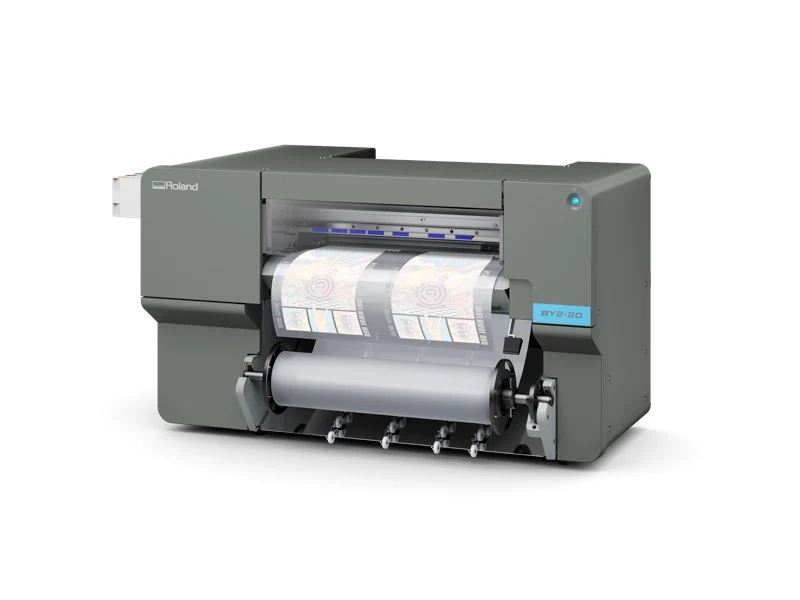

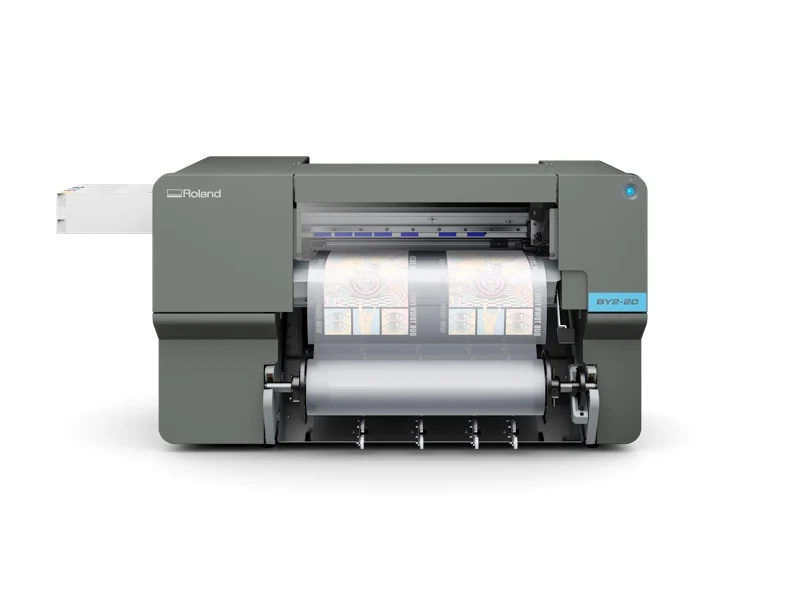

Roland VersaSTUDIO BY2-20 Direct-to-Film (DTF) Printer — 20"

Roland VersaSTUDIO BY2-20 — 20" Direct-to-Film Printer

The Roland VersaSTUDIO BY2-20 is a compact 20-inch DTF printer built for apparel decorators who need consistent white density run after run. Dual white ink channels, a redesigned ink delivery path, improved filtration and active internal cooling work together to hold color and white coverage steady through long production days.

Built on Roland DG's desktop platform, the BY2-20 pairs the printer with matched film, powder and software so the whole direct-to-film process stays predictable — from artwork preparation through to the finished transfer.

DTF Printing and Standalone Cutting in One Machine

Beyond direct-to-film, the BY2-20 runs standalone cutting. That covers HTV lettering, numbering and specialty media, or hybrid DTF/HTV jobs, without putting a second device on the bench. Transfers apply to cotton, polyester blends, denim, nylon, rayon and more.

Built for Stable Production

• Dual white ink system — two white channels with 500 ml cartridge support, holding density across longer runs
• Greater print stability — DTF-optimized ink delivery, consistent printhead performance and internal cooling
• Automated media setup — sensor-based adjustment for accurate alignment and reduced skew
• Automated maintenance — keeps the printer ready between jobs and reduces downtime
• Compact footprint — fits production floors and retail environments alike

What's Included with the BY2-20

• Roland DG Connect Designer — vector editing, background removal and automatic white layer generation
• VersaWorks 7 — RIP software with transparent PNG handling, white layer processing and layout tools
• Roland DG Connect — remote monitoring of printer status, maintenance and production
• Power cord, media holders, replacement separating knife blade, user's manual
• One-year Roland DGA warranty (registration within 60 days and continuous use of Roland DGA approved inks required)

Roland BY2-20 Specifications

Printing method	Piezo ink-jet
Media width	5.91 to 20.27 in. (150 to 515 mm)
Media thickness	Max. 1.0 mm with liner (printing); 0.4 mm with liner / 0.22 mm without (cutting)
Roll outer diameter	Max. 5.9 in. (150 mm)
Roll weight	Max. 13.2 lb. (6 kg)
Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing / cutting width	Max. 18.89 in. (480 mm)
Ink type	S-PG2 INK, 220 ml or 500 ml cartridge
Ink colors	Five — cyan, magenta, yellow, black, white (×2)
Printing resolution	Max. 1,440 dpi
Cutting speed	0.4 to 5.9 in./sec (10 to 150 mm/sec)
Blade force	30 to 500 gf
Blade type	Roland DG CAMM-1 series
Print heater temperature	86°F to 95°F (30°C to 35°C)
Dryer temperature	86°F to 100.4°F (30°C to 38°C)
Connectivity	Ethernet (100BASE-TX / 1000BASE-T, auto switching)
Rated input	100–240 VAC, 50/60 Hz, 2.1 A
Power consumption	Approx. 185 W operating / 32 W sleep
Acoustic noise	62 dB (A) or less during operation
Dimensions (W × D × H)	42.09 × 30.99 × 24.49 in. (1,069 × 787 × 622 mm)
Weight	145.5 lb. (66 kg)
Operating environment	68 to 82.4°F (20 to 28°C), 40 to 60% RH, no condensation

How the DTF Process Works

1. Prepare print data — add a white base layer to CMYK artwork in Connect Designer or VersaWorks
2. Print to film — output in reverse onto Roland DG DTF Film using S-PG2 CMYK and white inks
3. Apply powder — apply Roland DG S-Powder to wet ink, then remove excess
4. Cure the powder — melt and cure under controlled temperature in an oven or shaker unit
5. Transfer — apply to fabric with a heat press at the recommended temperature and pressure

Frequently Asked Questions

How does the BY2-20 differ from the original Roland BY-20?

The BY2-20 adds a second white ink channel, a reworked internal ink path with raised cartridge and tubing positions for better supply pressure, improved filtration, and advanced temperature management. It also supports 500 ml cartridges, which lowers cost per print on higher-volume work.

What film and powder does the BY2-20 use?

Roland DG DTF Film and Roland DG S-Powder, matched to S-PG2 inks as part of the complete Roland DTF system.

Can the BY2-20 cut heat transfer vinyl?

Yes. Standalone cutting is built in, using Roland DG CAMM-1 series blades, for HTV graphics, lettering, numbering and specialty media — including hybrid DTF/HTV workflows.

What are the shipping requirements?

At 145.5 lb. the BY2-20 ships by freight. Contact us for delivery scheduling and installation options.

Is training and support included?

The BY2-20 is backed by Roland DGA's one-year warranty, with extended service contracts available. Contact PrintFinish for setup and training options.
