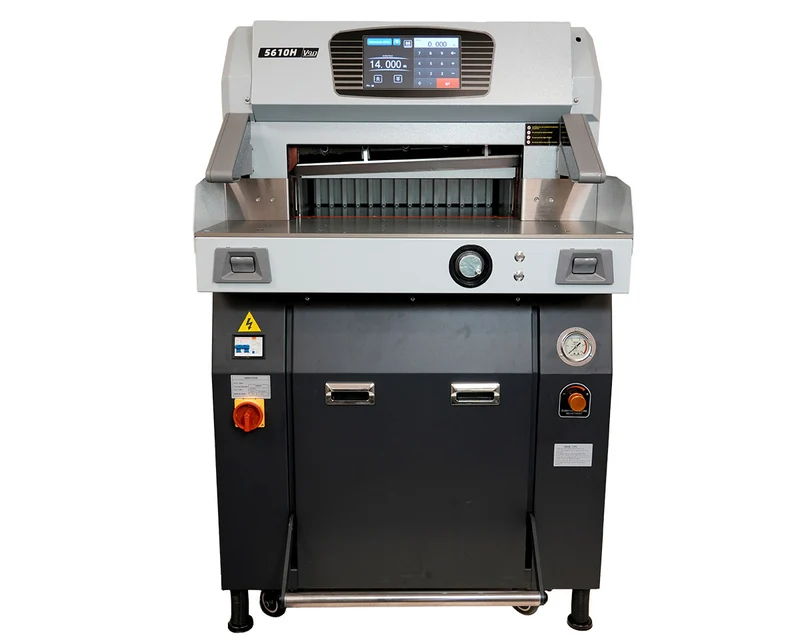

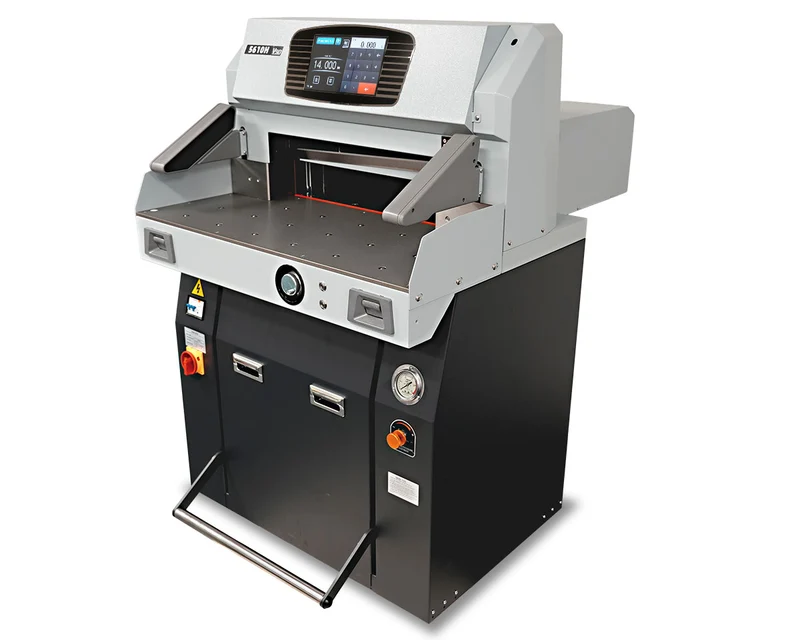

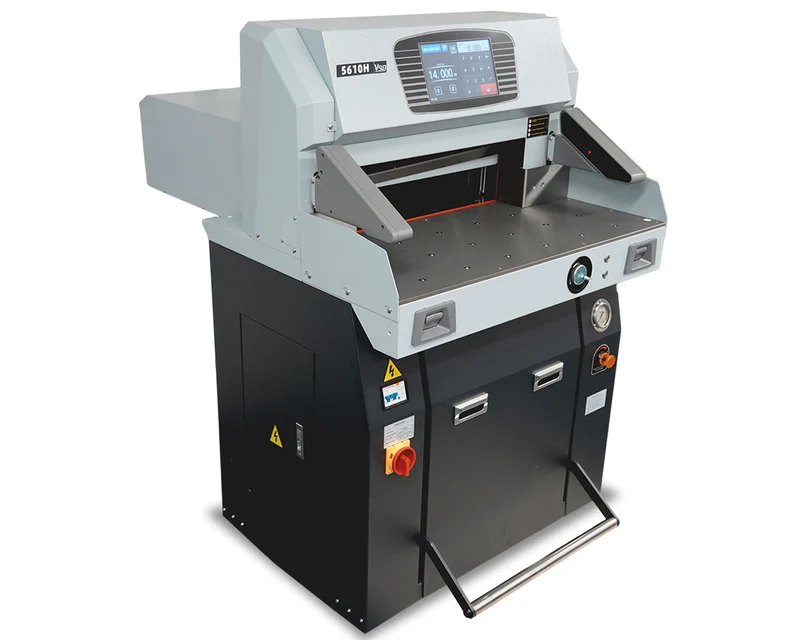

Boway 5610H Programmable Hydraulic Paper Cutter, 22"

Boway Model 5610H Programmable Hydraulic Cutter 22" Wide

The Boway 5610H is a state-of-the-art hydraulic paper cutter. This machine handles high-volume, precise cutting for commercial printing and bindery operations.. This machine pairs strong hydraulic power with a smart 10.2” touchscreen. It offers easy programming and delivers high accuracy and efficiency for all paper-cutting tasks.

Product Features:

• Enhanced Operator Safety
• Aluminum Table (Air Optional)

• Powerful Hydraulic Operation
• External Hydraulic Control
• Advanced Programmable Control
• High-Performance Servo Motor
• Versatile Cutting Capacity
• Optional Side Tables

Key Features & Benefits

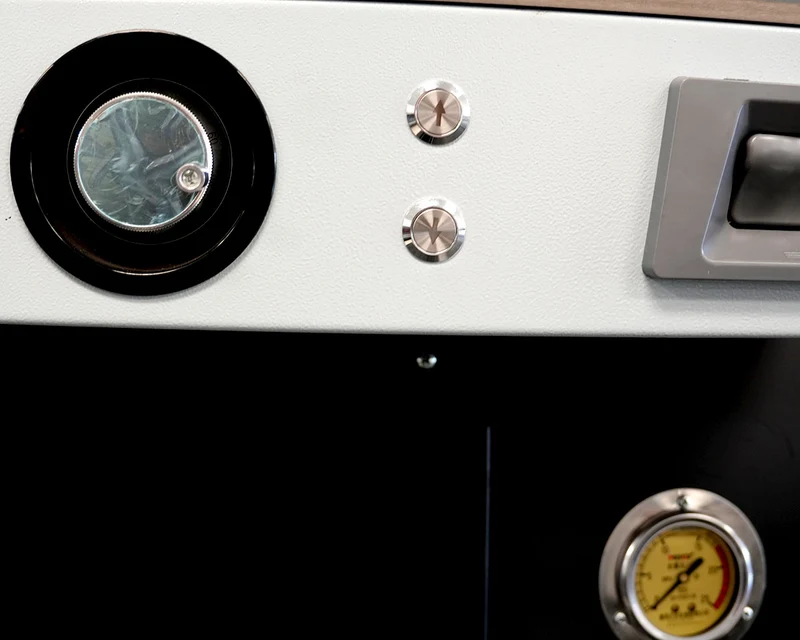

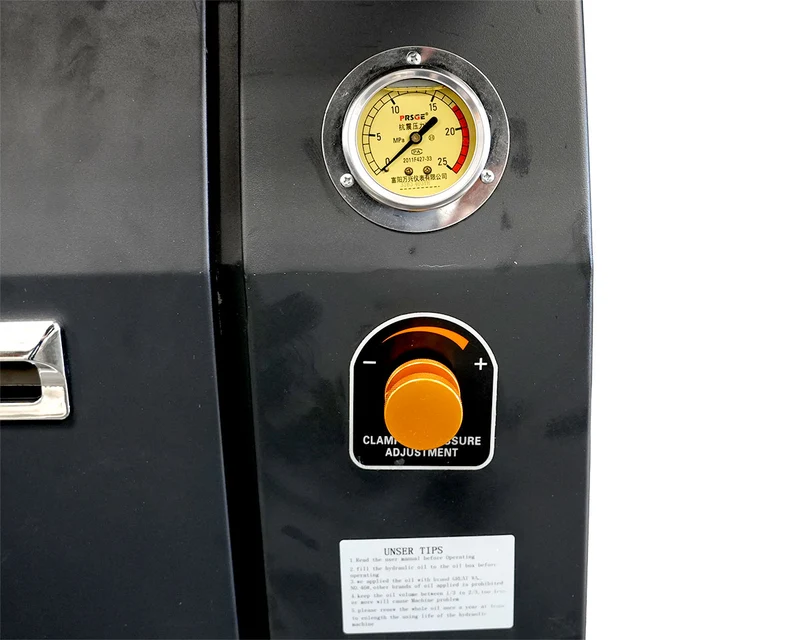

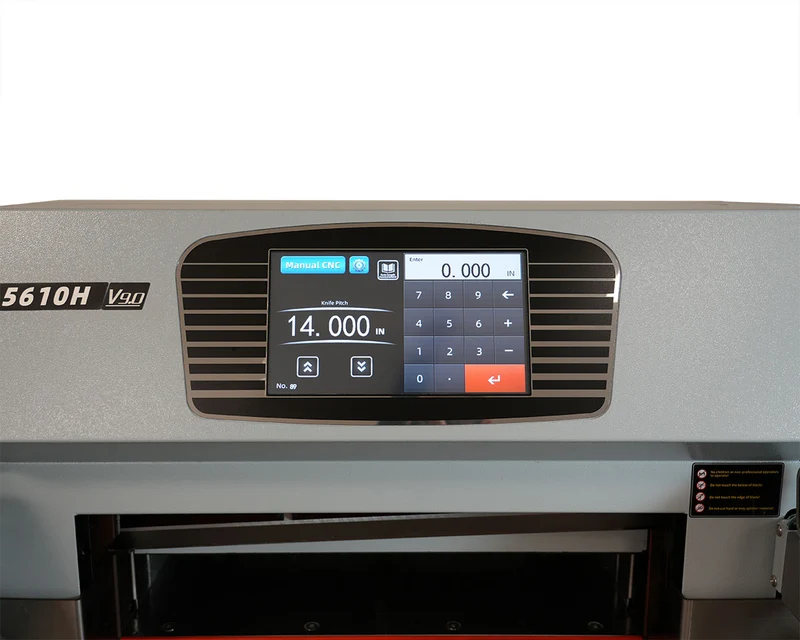

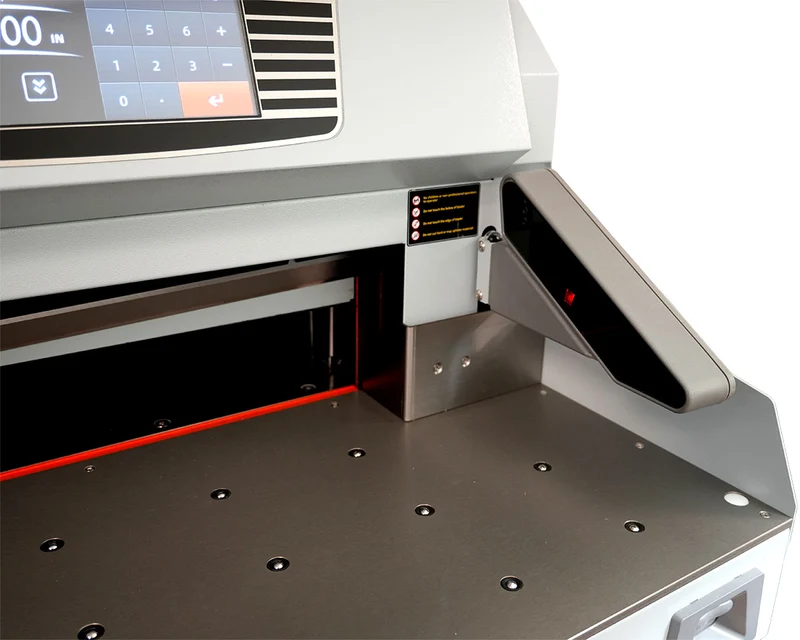

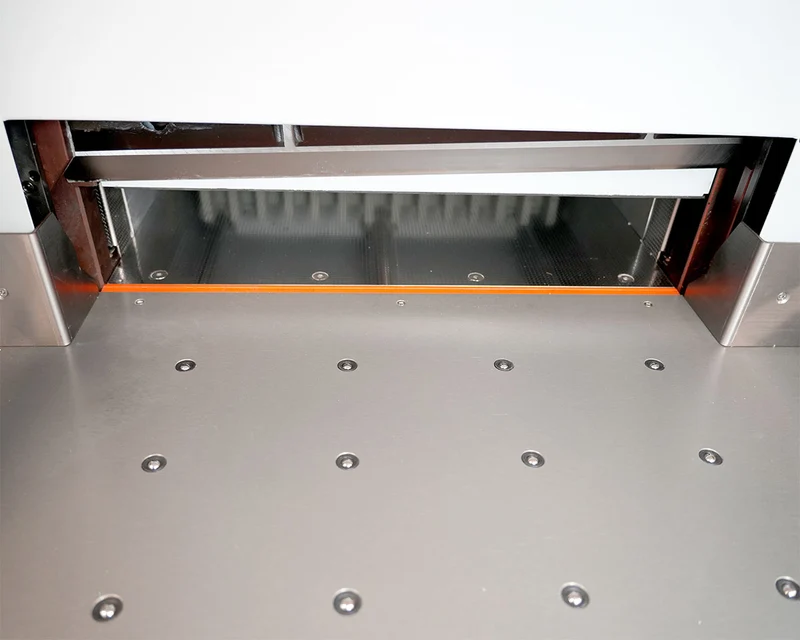

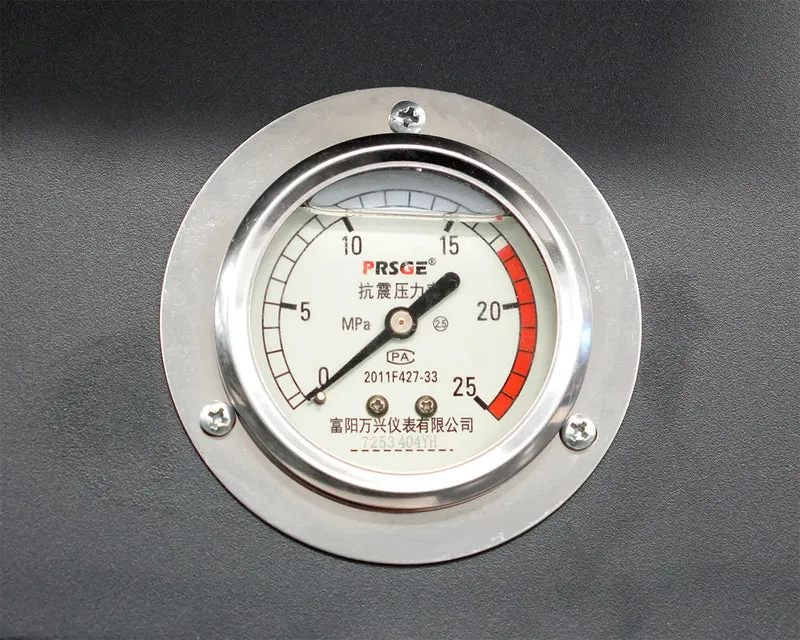

Enhanced Operator Safety: Features a crucial Light Beam Safety curtain that instantly stops the machine if the cutting area is breached, ensuring maximum operator protection. Aluminum Table: The high-quality Aluminum Table simplifies material handling. It moves and positions heavy paper stacks with minimal effort (Air optional). Powerful Hydraulic Operation: The hydraulic clamp and blade deliver strong, steady pressure for smooth cuts through thick stacks. You can use the foot pedal to control pre-clamping manually External Hydraulic Control: It includes an outer hydraulic pressure controller for easy pressure checks and adjustments. Two outside pressure indicators help you monitor cutting and clamping pressures with more flexibility. Advanced Programmable Control: The 10.2” touchscreen lets operators program and store many cut jobs with ease. It reduces setup time and keeps cuts repeatable with ±0.2 mm accuracy. High-Performance Servo Motor: The Servo Motor moves the backgauge with precise and reliable control. It delivers high accuracy and long-lasting performance. Versatile Cutting Capacity: Handles an impressive Max Cutting Size of 22” x 22” (560mm x 560mm). Also has a substantial Max Cutting Height of 3.9” (100mm). Optional Side Tables: Side Tables are Optional for extending the work area and providing greater support for larger sheet sizes.

Technical Specifications

Feature	Specification	Detail
Model	5610H
Max Cutting Size	22” x 22”	560mm x 560mm
Max Cutting Height	3.9”	100mm
Min Cutting Size	0.9”	20mm
Cutting Accuracy	±0.2 mm	Superior Precision
Clamping System	Hydraulic + Pedal	High-Pressure, Controlled Clamping
Cutting System	Hydraulic	Powerful and Consistent Cut
Display	10.2” Touchscreen	Programmable and User-Friendly
Motor Type	Servo Motor	Precise Backgauge Movement
Power	220V, 50/60Hz, 1ph	Standard Power Requirements
Dimensions (LxWxH)	49” x 35.4” x 55”	1250mm x 900mm x 1400mm
Side Tables	Optional	(Available Separately)
