Akiles Diamond 6 / Diamond 7 Electric Round Cornering Machine

10 262,97 €15 916,78 €35% OFF
Model: Diamond 6
Retours sous 30 joursGarantie 1 an
Livraison estimée: 5 octobre - 7 octobre.
10 262,97 €
Quantité
Moyens de paiement
Détails du produit

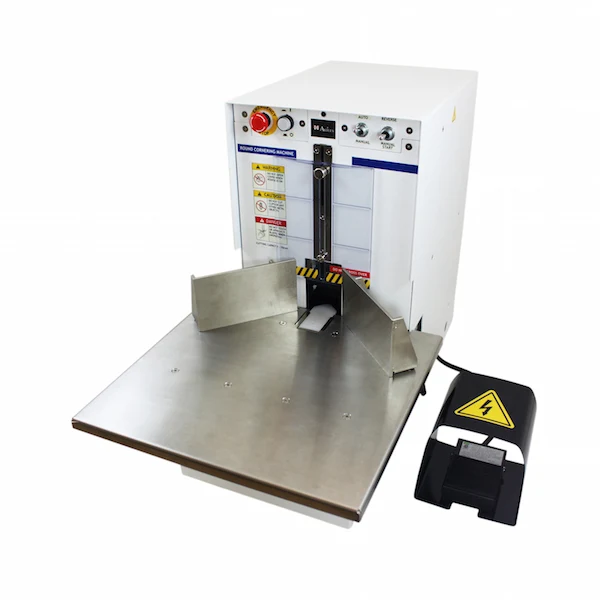

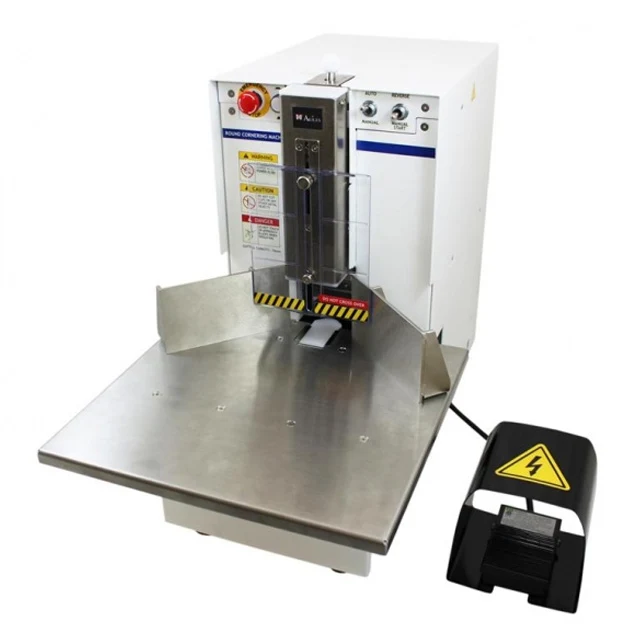

Akiles Diamond 6 / Diamond 7 Electric Round Cornering Machine

The Akiles Diamond 6 and Diamond 7 are commercial-duty electric corner rounders for print shops and binderies. Choose the Diamond 6 for 2-3/8 in. (60 mm) stacks with slot-punching, or the Diamond 7 for 2-3/4 in. (70 mm) stacks with a detachable pressing bar and a 200 W motor. Both work with all standard materials — PVC, polyester, leather, paper, polypropylene and more — for covers, cards, menus, invitations and packaging.

  • Diamond 6: cuts 2-3/8" (60 mm) or 600 sheets of 20 lb paper; slot die up to 2 mm; 100 W motor; 104 lb.
  • Diamond 7: cuts 2-3/4" (70 mm) or 700 sheets of 20 lb paper; detachable pressing bar; half-moon knife; 200 W motor; 110 lb.
  • 7 interchangeable dies — 1/8", 1/4", 3/8", 1/2", 5/8", straight cut, plus slot (Diamond 6) or half-moon (Diamond 7). 1/4" die included.

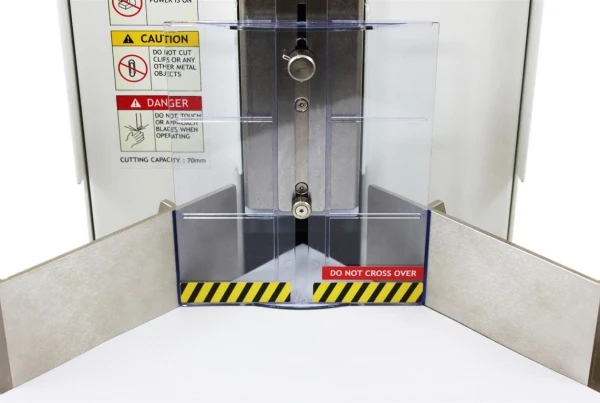

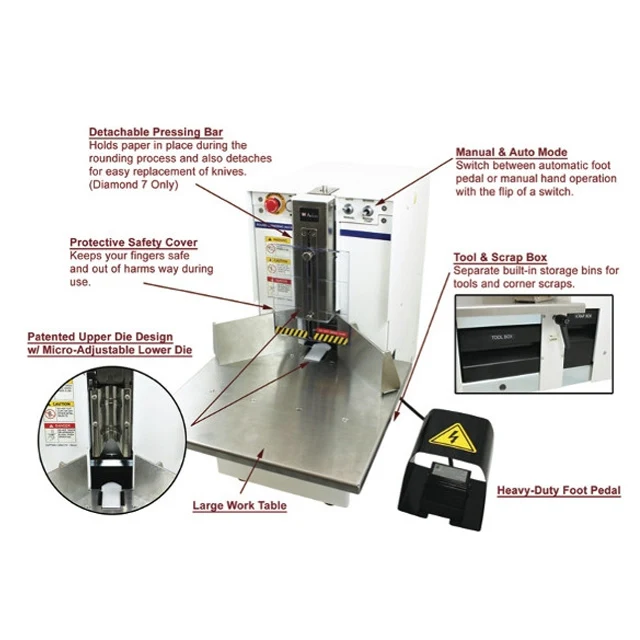

  • Protective safety cover keeps fingers out of the cutting area during use.
  • Patented upper die design and micro-adjustable lower die for smooth, accurate cuts.
  • Manual and auto mode — switch between the heavy-duty foot pedal and manual hand operation.

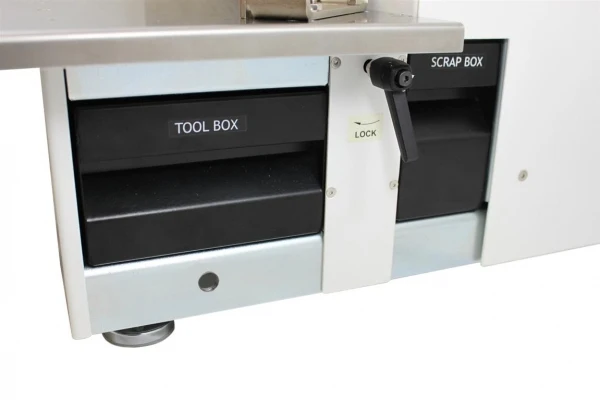

  • Large work table with built-in tool box and scrap bin.

Specifications

Model Diamond 6 Diamond 7
Maximum Rounding Capacity 2-3/8" (60 mm) — 600 sheets (20 lb) 2-3/4" (70 mm) — 700 sheets (20 lb)
Maximum Slot Capacity 2 mm N/A
Included Die 1/4"
Available Dies 1/8", 1/4", 3/8", Straight and Half-Moon (1/2" and 5/8" special order); Slot die on Diamond 6 only
Detachable Pressing Bar No Yes
Protective Safety Cover Included
Work Table Included
Storage & Trash Bin Included
Motor 100 W 200 W
Dimensions 24-5/8" W x 12-5/8" L x 17-1/2" H
Weight 104 lbs 110 lbs
Warranty 1 Year

Knives & accessories

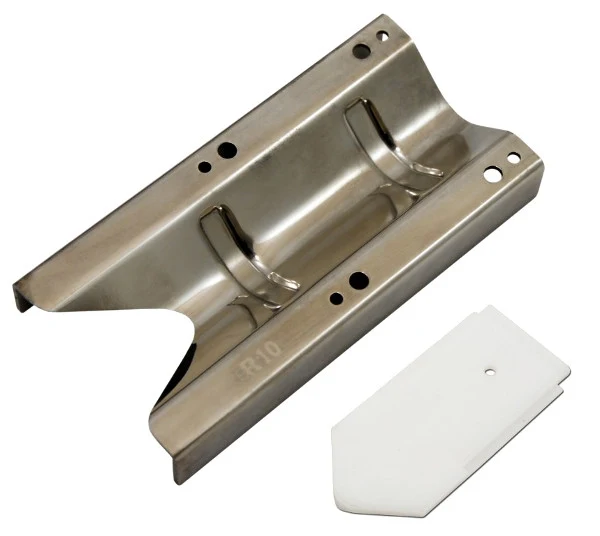

Blade sets for both models: 1/8" (AD6/7-K3.5), 1/4" (AD6/7-K6), 3/8" (AD6/7-K10), 1/2" (AD6/7-K13), 5/8" (AD6/7-K16); Straight Cut Knife AD6/7-K15; Large Work Desk AD6/7-WD (20" x 11-3/4"). Diamond 6 only: Slot Punch Die AD6-SLOT. Diamond 7 only: Half-Moon Knife AD7-K21 and Half-Moon Knife Regulator AD7-KHMBR.


Warranty: 1 Year Manufacturer
